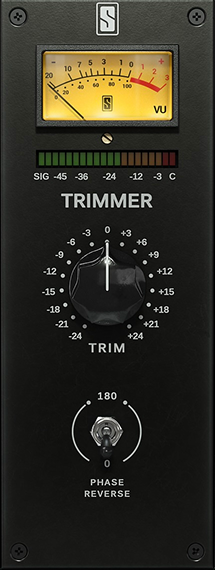

Trimmer

The Trimmer is a very useful Module that gives you several controls to control some basic operations within the Virtual Mix Rack: RMS and Peak Level Monitoring, a simple Trim control and a Phase Reverse Switch.

When using it in the first slot, the Trimmer allows you to define how the signal will hit the following VMR module, with precise output level monitoring.

VU MeterPermalink

The VU Meter displays the RMS level of the signal at the output of the module, i.e., after the Mix.

The meter is calibrated to display 0 VU when being fed by a 1kHz sine wave with a peak level of -18dBFS by default. You can recalibrate this level by adjusting the screw below¹.

LED MeterPermalink

The LED Meter displays the Peak level of the signal at the Output of the module.

The level is in dB Full Scale and goes from -72dBFS to 0dBFS.

Trim KnobPermalink

The Trim Knob is a simple gain control, going from -24dB to +24dB.

Phase Reverse SwitchPermalink

The Phase Reverse Switch is very classical: in Mono and Stereo, it flips the signal’s polarity for all channels.
