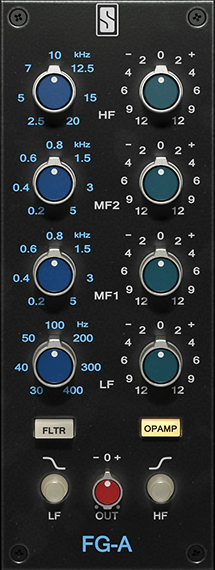

module-fga

The FG-A reproduces the sound and characteristics of one of the most famous American Equalizers that is known for its musical tone and saturation.

EQ Bands LF-MF1-MF2-HF

The EQ Bands have two controls: Frequency and Gain. These controls are stepped by default and continuous through fine adjustment mode (right-click + drag or cmd/ctrl + drag). LF and HF Bands can be set to Shelf shape through LF/HF buttons.

FLTR

Activates a band-pass filter to the overall signal, with cutoffs at 50Hz and 15kHz. This filter is OFF by default.

OPAMP

Activates non-linearities (slight saturation and harmonics) to the overall signal. This feature is ON by default.

LF/HF Buttons

Change the shape of HF and LF Bands from Bell to Shelf. This is set to Bell by default.

Output Gain

Usual output gain from -12dB to +12dB.
