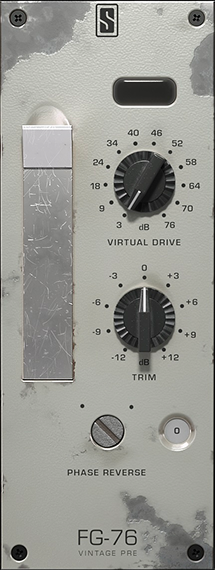

FG-76

This FG76 preamp module is modeled after a classic vintage tube preamp that has been used on many classic recordings. It has a thick, warm, and colorful tone that can make tracks and mixes sound more ‘alive’. The bottom end saturates in a very unique and musical way, making it a great module for bass guitar and kick drum tracks.

Bulb

The Bulb indicates the amount of saturation applied to the input signal. It will begin to light up at the first point of saturation and glow even brighter as the input level or Virtual Drive is increased.

Virtual Drive

The Virtual Drive knob simulates the action of increasing the amplifier input gain while automatically decreasing an internal output trim, so it can set the gain staging of the preamp easily. For most color and tone effects, the left part of the knob should be used. For more saturation and full on distortion, the virtual drive can be pushed to the right side or even fully cranked.

Trim and Phase Reverse

The Trim Control is an output gain control.

The Phase Reverse switch is very classical: in Mono and Stereo, it flips the signal’s polarity for all channels, right after the input, before entering the preamp algorithm.
